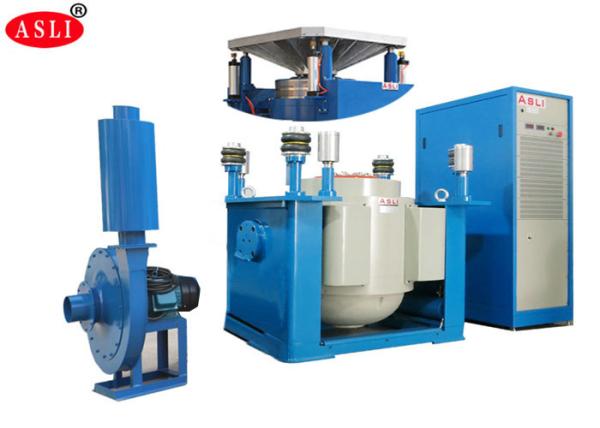

Electrodynamic Shaker Table 3 Axis Mechanical Vibration Machine Test

Name: Electrodynamic Shaker Table 3 Axis Mechanical Vibration Machine Test
Brand: ASLI
Price: 1 USD

Wholesale Electrodynamic Shaker Table 3 Axis Mechanical Vibration Machine Test from china suppliers

Brand Name : ASLI

Model Number : ES-30

Certification : CE, ISO, SGS

Place of Origin : CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 100 sets per quarter

Delivery Time : 40~50 days

Packaging Details : strongly wooden case

vibration force : 30KN

Application : battery

Test Standard : IEC 60068-2-64

Acceleration : 100g

Test : Shock

Input : 1 channel

Contact Now

Electrodynamic Shaker Table 3 Axis mechanical shaker table vibration shaker table machine Electrodynamics Vibration Tester

Vibration testing machine Design standards:MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Vibration testing system Applications: battery, automotive,electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc.

Vibration Test Shaker Parameter:

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed (m/s)	Rated displacement (p-p) mm	Max. Loading (Kg)	moving coil(Kg)	Dimension of Moving coil (mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450
ES-120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ500
ES-160	160000	160000	3-2100	1000	1.8	51	1500	150	Φ600
ES-200	200000	200000	3-2000	1000	1.8	51	2500	200	Φ650
ES-350	350000	350000	3-1700	1000	1.8	51	4500	300	Φ870

Electrodynamic Shaker Table 3 Axis Mechanical Vibration Machine Test

vibration test machine features

Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
Perfect performance on amplitude variation.
High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
Rapid self-test diagnostics and chain safeguard, high high safety and reliability
Air gasbag isolation damping device realize the the vibration table with no need for special foundation. Perfect reappearance vibration waveform and the reduction of vibration transmission
Different application on the vertical and horizontal tables.
Simple operation for the controller.

Besides vibration test bench, our product range also covers:

(1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in stability, Thermal shock test chamber, Temperature Humidity UV test chamber, Ramp rate temperature chamber.
(2) Aging test series: High Temperature oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone test chamber, Burn in test equipment
(3) Weather simulation test series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV resistance test chamber
(4) Mechanical test series: Vibration test machine, Drop test machine , Bump Test Machine, Acceleration mechanical shock tester etc.
