ECE R100 Standard Vertical Vibration Testing Machine for Automotive Batteries
European standards and certification requirements related to automotive batteries:
EN 50342-1 and EN 50342-2: These standards are standards for general requirements and performance testing of batteries, and are applicable to different types of batteries, including automotive batteries. They specify the performance and safety requirements of batteries.
ECE R100 standard (Economic Committee Regulation 100): This is an international standard that specifies the safety performance requirements for battery systems and high-voltage electrical components of electric vehicles. For the battery system of electric vehicles, ECE R100 provides relevant safety requirements.
EN 60068-2-64: This is a standard for vibration performance testing of equipment, which is applicable to equipment such as automotive batteries. Vibration testing helps ensure that the battery can work properly in the vibration environment when the vehicle is running.
ASLI brand ES series electromagnetic vibration system simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.
Technical Parameters:
| Model | Rated Sine
Force (N) | Rated Random Force (N) | Frequency
Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement
(p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
The performance parameters
1. With forced air cooling
2. The force range 3kN ~ 70kN.
3. The ratio of random excitation force to sinusoidal excitation force is 1:1
4. 2 times sinusoidal impact force (3 times optional)
5. Peak displacement value :25mm, 40mm.51 mm.76 mm, 100 mm.
6. Lightweight armature with optimized design has strong anti-vibration performance.
7. The air spring at the trunnion position has remarkable vibration isolation effect
8. The central chamber air spring has strong bearing capacity and excellent low-frequency performance
9. Dual magnetic circuit design, small magnetic leakage, uniform magnetic field.
10. Available test functions include sine and random functions.The impact.And more.
11. Excellent heat dissipation effect and low noise
12. Efficient and reliable power amplifier
Horizontal and Vertical Test The air-cooled vibration test system with sliding table can be used for horizontal and vertical tests.
Easy to flip and provide simple two-way switching mode.
Power Amplifier with MOSFET or IGBT Module The power amplifier of our test equipment adopts high-performance MOSFET or IGBT module, which has ultra-high stability and reliability.Safety Performance Our air-cooled vibration test system complies with European standard test requirements.Its power amplifier is equipped with an emergency stop button, which can respond to emergencies in time.At the same time to meet the United States UL and European CE standard safety requirements.
Please feel free to contact us if have any doubt or needs about ECE R100 Standard Vertical Vibration Testing Machine for Automotive Batteries.
|
|

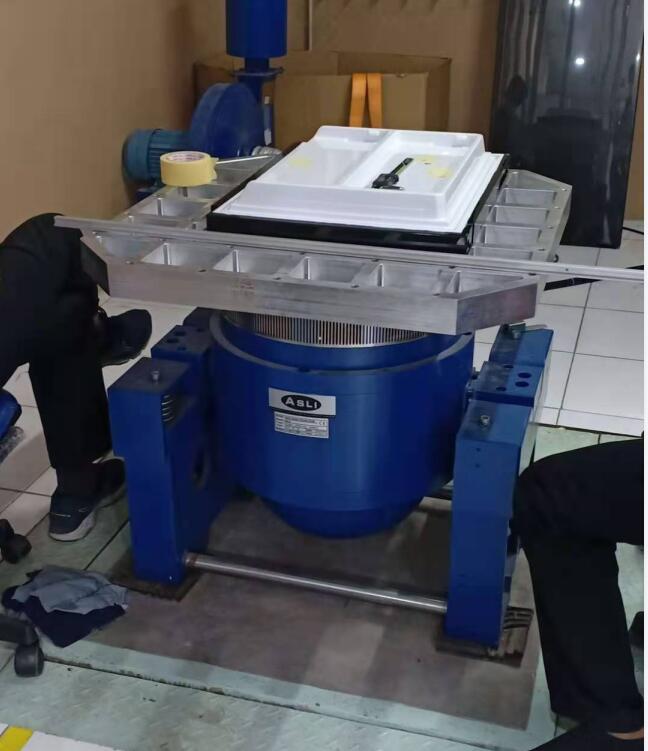

ECE R100 Standard Vertical Vibration Testing Machine for Automotive Batteries Images
|
